Fiber Glass Floor Filter Cotton for Spray Booth

stars, based on ( 0 ) reviews
$2.50 square meter
Quantity Price
20+ $2.50
200+ $2.25
1000+ $2.00
999999 items available


Detailed Specifications:

Model No.: LHG

Weight: 250g/m²,

Thickness: 60mm

Air Speed: 1.2m/s

Air Flow Rate: 4320 m³/h

Min Wind Pressure: 13Pa

Max Wind Pressure: 250Pa

Filtering Effect: 67.6%

Dust Holding: 3540g/m²

Max Temperature: 350

Flame Resistance: F-1 DIN53438


Model No.: LH

Weight: 240g/m²,

Thickness: 60mm

Air Speed: 1.3m/s

Air Flow Rate: 4680 m³/h

Min Wind Pressure: 12Pa

Max Wind Pressure: 250Pa

Filtering Effect: 69.4%

Dust Holding: 3850g/m²

Max Temperature: 350

Flame Resistance: F-1 DIN53438


Package: 0.8m wide, 20m long for a roll

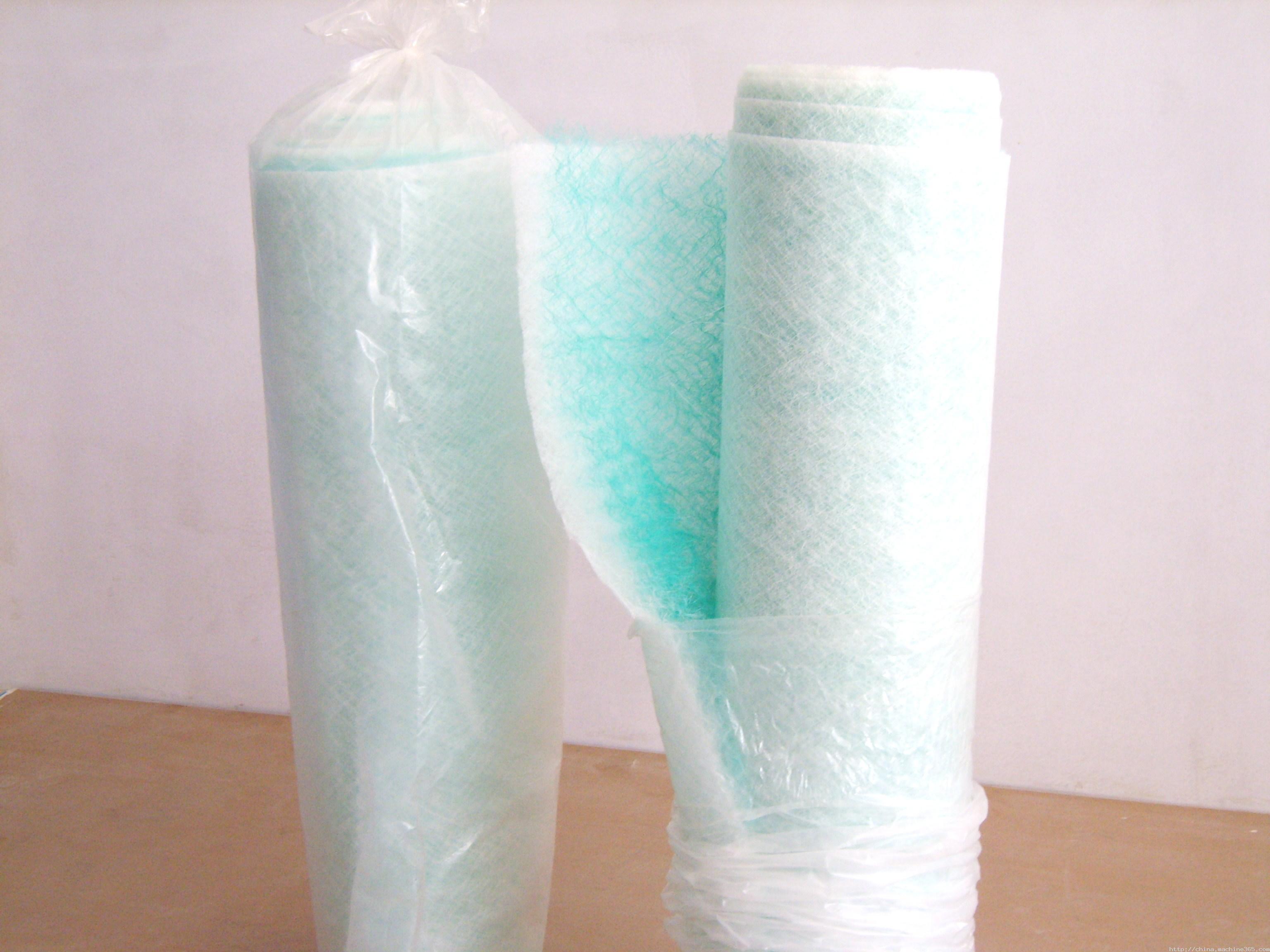

Real Shot





The correct way to change filter cotton for the spray booth

1. When changing the ceiling filter contton, firstly remove air inlet, ceiling and floor diamond plate and grids, and clean the air duct, angle and the place easy to hold dust.

2. Close the spray booth doors, turn on the fan to blow 1-3 minutes. After cleaning, then install the filter cotton. When install the filter cotton, please make sure filter cotton and filter frame is flat, the gap is similar size and make silicon around the frame. Then install the air inlet and pre-filter and ceiling filter.

3. Then turn on the fan again to blow about 15 minutes, clean again. Then install the floor filter. The green side should be face to the ceiling, inside the booth. The white side should be face to the floor.


Installation Position
